Free Foam PVC Panel Tooling
Description

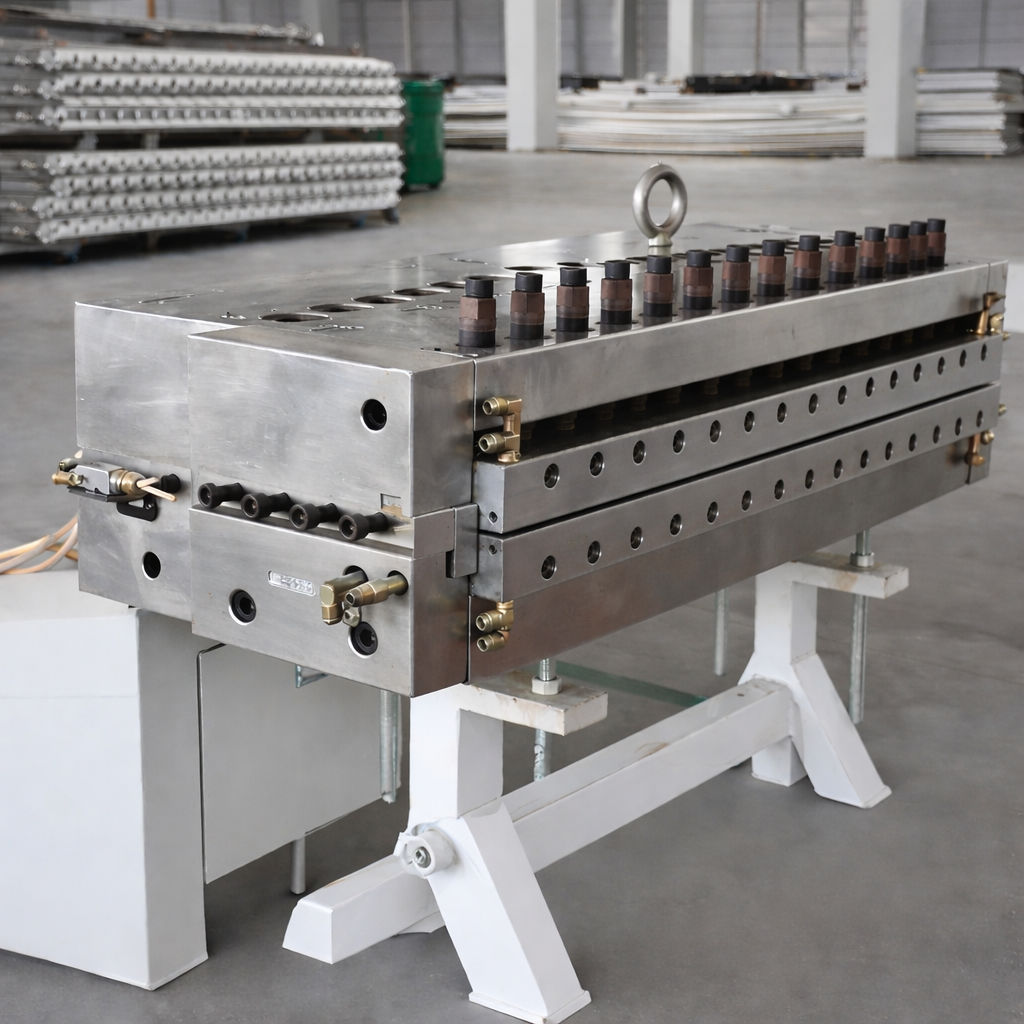

Free Foam PVC Panel Tooling
Innovative Extrusion Solutions for Lightweight, Cost-Effective, and Versatile Panels
Introduction
In today’s fast-changing building materials industry, manufacturers are constantly searching for solutions that combine lightweight properties, durability, and cost efficiency. Traditional materials such as wood, plywood, and MDF, while widely used, often come with disadvantages — susceptibility to moisture, weight limitations, environmental restrictions, and rising raw material costs. Into this landscape steps Free Foam PVC Panels, a product that has quickly become a preferred alternative in construction, interior design, signage, and packaging industries.
At the very heart of producing these panels lies a critical component: the Free Foam PVC Panel Tooling. This specialized extrusion die set determines not only the dimensional accuracy of the panel but also the quality of foaming, the surface properties, and ultimately, the performance of the finished product. For any company wishing to enter or expand within the PVC panel market, the choice of tooling is as important as the extruder itself.
Market Demand for Lightweight Panels
The demand for lightweight yet durable building materials is growing across the globe. Urbanization, rapid housing development, and the expansion of cost-sensitive markets in Asia, Africa, and South America are pushing manufacturers to find economical alternatives to conventional wood-based panels. Simultaneously, environmental considerations and sustainability goals encourage the use of PVC-based products, which can be recycled, require less natural resource consumption, and offer longer service life.
Free Foam PVC panels fit this demand perfectly. They are:
Lightweight: Easier to transport, install, and handle.
Affordable: Lower production costs compared to MDF or high-density Celuka panels.
Versatile: Suitable for a wide range of interior and decorative uses.
Moisture resistant: Unlike wood, they are not affected by humidity or termites.
For manufacturers, this creates a strong market incentive to invest in reliable, high-performance tooling that can consistently produce panels with the right dimensions, density, and surface quality.
Why Tooling Matters
While the extruder provides the raw processing power, the tooling design is what shapes the final product. A well-engineered Free Foam PVC Panel Tooling ensures:
Even distribution of melt across the full width.
Controlled foaming behavior without external compression.
Stable thickness adjustment from 3 to 20 mm.
Surface uniformity despite the absence of a compressed skin layer.
In essence, tooling is the architect of the panel’s structure. Without precise tooling, the product risks becoming warped, brittle, or dimensionally unstable — all of which directly impact the manufacturer’s profitability.
Technology Background – Free Foam vs. Celuka
The Evolution of PVC Foam Extrusion
PVC foam sheet technology has developed over decades, primarily along two parallel routes: Celuka foaming and Free Foaming. Both methods rely on the addition of chemical foaming agents into the PVC melt, but the way the foam expands and stabilizes defines the product’s surface quality, density, and mechanical properties.
Celuka extrusion uses a calibration system that compresses and cools the outer surface of the panel as it exits the die. This results in a dense, smooth, and hard outer layer — often called a “skin” — that protects the inner foam structure. Celuka boards are more rigid, heavier, and costlier to produce. They are ideal for external cladding, signage requiring durability, and applications where surface hardness is critical.
Free Foam extrusion, on the other hand, allows the PVC melt to expand freely after leaving the die. The foaming process is not confined or compressed, meaning the cell structure is lighter, the density is lower, and the surface has a slightly more open, matte texture. While not as rigid as Celuka, Free Foam panels are lighter, cheaper, and easier to process. They are widely used indoors, especially in interior decoration, wall cladding, exhibition stands, and advertising displays.
Key Structural Differences
To understand why tooling design is so important, let’s break down the structural contrasts between Celuka and Free Foam panels:
| Feature | Celuka Foamed Panel | Free Foam PVC Panel |
|---|---|---|
| Surface | Smooth, glossy, dense skin | Slightly rougher, more porous |
| Density | Higher, heavier | Lower, lightweight |
| Weight | Considerable | Very light |
| Cost | Higher production cost | More economical |
| Application | Outdoor & indoor use | Primarily indoor |
| Foaming control | Strongly compressed | Naturally expanded |
Why Free Foam Panels are Growing in Popularity
The market shift toward Free Foam PVC panels can be traced to several macro trends:
Cost Pressure in Construction & Signage
Builders, contractors, and advertisers are under constant pressure to reduce costs. Free Foam panels provide a cost-effective alternative without compromising basic performance.Lightweight Structures
In exhibition and event industries, lightweight panels save transport costs and reduce installation time. Similarly, in construction, lighter panels reduce the load on structures.Sustainability Concerns
Since Free Foam panels require less raw material (due to their lower density), they represent a more sustainable option. Manufacturers can also recycle scrap more efficiently.Ease of Processing
Free Foam panels are easier to cut, print on, laminate, or thermoform. This opens doors to creative uses in advertising and decoration.
The Role of Tooling in Free Foam Production
Because Free Foam panels lack the “skin” that Celuka panels naturally form under compression, the tooling must be designed to balance expansion, heat distribution, and melt flow with precision. The wrong die design can lead to:
Uneven cell structure, causing weak spots.
Surface defects, such as rough patches or cracks.
Dimensional instability, with panels warping after cooling.
A well-engineered Free Foam PVC Panel Tooling ensures that the melt exits the die uniformly, expands in a controlled fashion, and stabilizes during cooling — all while maintaining the required thickness (3–20 mm) and width (400–1220 mm).
Free Foam vs. Celuka: The Strategic Choice for Manufacturers
Choosing between Celuka and Free Foam tooling is ultimately a business decision:
If the target market demands durability, outdoor performance, and premium finishes, Celuka is the better option.
If the focus is on economical indoor solutions, signage, and lightweight applications, Free Foam tooling is the smarter investment.
For many manufacturers, the answer is diversification: offering both product lines. But for new entrants or those targeting fast-growing low-cost segments, Free Foam tooling offers the best route into the market.
Technical Specifications of Free Foam PVC Panel Tooling
When evaluating extrusion tooling, technical specifications are more than just numbers on a datasheet — they represent the capabilities, efficiency, and limitations of the production line. High-quality tooling is the backbone of consistent manufacturing, and every detail contributes to final product quality. Below is a breakdown of the specifications for Free Foam PVC Panel Tooling, followed by a detailed explanation of how each parameter affects production.
Technical Data Table
| Specification | Value / Range |
|---|---|
| Mold Material | Hardened steel with industrial chrome plating |
| Production Width | 400 – 1220 mm |
| Thickness Range | 3 – 20 mm (adjustable) |
| Foaming Method | Free expansion (no compressed skin) |
| Raw Material | PVC + chemical foaming agents (AC or OBS) |
| Output Capacity | Up to 450 kg/h |
| Line Speed | 1 – 3 m/min (depending on extruder type) |
| Temperature Control | Multi-zone, electric heating |
Breakdown of Specifications
1. Mold Material: Hardened Steel with Chrome Plating
The tooling body is manufactured from high-grade hardened steel, chosen for its resistance to wear, high pressure, and thermal stress. During extrusion, molten PVC combined with chemical foaming agents flows under high shear forces; without durable material, the tooling would quickly deform or corrode.
The industrial chrome plating adds a protective layer, reducing friction, preventing PVC sticking, and improving the lifetime of the die. This ensures smoother melt flow, longer service intervals, and less downtime for cleaning.
2. Production Width: 400 – 1220 mm
The tooling is designed to accommodate a wide panel range. At the lower end, 400 mm panels are suitable for small interior partitions, displays, and signage. At the upper end, 1220 mm width matches standard sheet dimensions in the global building material market (commonly referred to as 4 feet).
Flexibility in width allows manufacturers to target multiple industries with the same equipment — from small advertising boards to large wall cladding sheets.
3. Thickness Range: 3 – 20 mm (Adjustable)
One of the greatest strengths of Free Foam PVC Panel Tooling is its adjustable thickness. Panels as thin as 3 mm are lightweight and ideal for printing applications, while thicker panels up to 20 mm provide structural rigidity for furniture, exhibition booths, or interior cladding.
Adjustability also means manufacturers can respond quickly to market demand — producing thin, economical panels one week and thicker, premium-grade panels the next, all without changing the tooling.
4. Foaming Method: Free Expansion
Unlike Celuka molds, which compress the outer surface, Free Foam tooling allows the PVC melt to expand freely after leaving the die. This creates a uniform, lightweight foam core with a slightly textured surface.
This method reduces density, lowers raw material usage, and results in panels that are 30–40% lighter than Celuka alternatives — translating directly into cost savings for both producers and end users.
5. Raw Material: PVC with Foaming Agents (AC or OBS)
The formulation typically includes:
PVC resin (the base polymer).
Foaming agents such as Azodicarbonamide (AC) or OBS, which release gases during heating, forming the foam structure.
Stabilizers and lubricants, ensuring smooth processing and thermal stability.
The tooling is engineered to handle these formulations efficiently, ensuring the gases disperse evenly for consistent cell structure across the panel’s width and thickness.
6. Output Capacity: Up to 450 kg/h
High throughput is vital for profitability. With an output capacity of up to 450 kilograms per hour, the tooling allows manufacturers to achieve economies of scale. This figure depends on extruder size (commonly ATP 93 or ATP 113 twin-screw extruders) and line configuration.
Consistent high output also minimizes waste, since stable foaming reduces off-spec products during production.
7. Line Speed: 1 – 3 m/min
The production line speed depends on panel thickness, extruder performance, and cooling capacity. Thinner panels can be produced faster, while thicker panels require slower speeds for proper foaming and cooling.
A speed range of 1–3 meters per minute provides a balance between productivity and quality control, ensuring panels stabilize correctly without deformation.
8. Temperature Control: Multi-Zone Electric Heating
Free Foam tooling relies on precise temperature control across multiple zones. The die is divided into segments, each equipped with independent electric heaters. This ensures:
Even melt flow across the width.
Controlled expansion of foam cells.
Prevention of burning, scorching, or incomplete foaming.
By adjusting each heating zone, operators can fine-tune panel properties, adapting to variations in raw materials or extruder performance.
Why These Specifications Matter
At first glance, these figures might seem like routine technical details. In reality, each specification is carefully engineered to maximize product consistency, efficiency, and profitability. Together, they make Free Foam PVC Panel Tooling a powerful asset for manufacturers aiming to supply the growing market for lightweight PVC panels.
Process Flow – From PVC Powder to Finished Panel
Producing Free Foam PVC panels is not just about melting plastic and shaping it. It’s a carefully choreographed sequence of steps where raw materials, mechanical forces, temperature profiles, and tooling design all work together. A mistake in any stage can ruin the panel: bubbles collapse, surfaces blister, thickness varies, or the sheet warps. Below is the complete journey of a Free Foam PVC panel.
Step 1: Material Preparation and Mixing
The foundation of a quality panel lies in the formulation. PVC resin by itself cannot foam — it requires a blend of additives. Manufacturers carefully measure and mix:
PVC resin powder – the base polymer.
Foaming agents (AC or OBS) – release gases when heated, creating the foam structure.
Stabilizers – prevent thermal degradation of PVC at high temperatures.
Lubricants – ensure smooth material flow inside the extruder.
Fillers and modifiers – improve impact strength, flame resistance, or reduce cost.
The blend is typically prepared in a high-speed mixer, where frictional heat helps bind the additives to the PVC particles. This dry blend is then cooled and fed into storage silos, ready for extrusion.
Step 2: Feeding into the Extruder
The mixture is fed into a twin-screw extruder — usually conical or parallel, depending on the line design (e.g., ATP 93 or ATP 113). The screws compress, shear, and heat the PVC powder until it melts into a homogenous plastic mass.
This stage is critical:
Too much heat, and the foaming agents activate prematurely, creating unstable bubbles.
Too little heat, and the resin won’t fully melt, leading to poor mixing and weak spots.
The extruder is essentially the engine of the line, but without precision tooling at the end, all that controlled melt would be wasted.
Step 3: Entering the Free Foam Tooling
Once molten, the PVC mixture enters the Free Foam PVC Panel Tooling. This is the moment where art meets engineering.
The Feeding Channel evenly distributes the melt to avoid dead spots or surges.
The Flow Divider balances melt distribution across the panel width, ensuring uniform thickness.
The Flat Die Outlet allows the melt to exit without compression, enabling the foaming process to occur naturally in open air.
Heating zones within the die maintain the right temperature profile, preventing premature solidification or uncontrolled foaming.
Here, the die design determines the future of the panel: whether the foam cells expand evenly, whether the thickness holds, and whether the surface develops the desired matte finish.
Step 4: Free Foaming and Initial Expansion
As the molten sheet exits the die, the foaming agents decompose, releasing gases that expand the plastic into a cellular structure. Unlike Celuka extrusion, there’s no external compression, so the surface remains slightly textured and porous.
At this stage, timing and control are crucial. If the expansion is too rapid, bubbles may burst; if it’s too slow, density remains high. The tooling design, coupled with heating control, ensures the foam develops at the right pace.
Step 5: Calibration and Cooling
Free Foam panels don’t pass through tight calibrators like Celuka sheets, but they still require controlled cooling to stabilize dimensions. Typically, the sheet moves across a series of cooling rolls or a conveyor system where chilled water or air reduces the temperature gradually.
This stage ensures:
The foam structure is “locked in” before collapse occurs.
The panel solidifies without warping.
Dimensional stability is achieved across width and thickness.
Since the panels are lightweight, careful handling is needed to avoid bending or scratches during cooling.
Step 6: Cutting and Sizing
Once cooled, the panels are cut to desired lengths using cross-cut saws or automatic guillotines. Width trimming may also be performed to ensure clean, straight edges.
Standard sizes like 1220 × 2440 mm (4 × 8 feet) are common, as they fit global building and advertising material standards. However, custom sizes can be cut for specific customer needs.
Step 7: Surface Finishing (Optional)
Depending on application, panels may undergo secondary finishing:
Printing or lamination for advertising boards.
Surface sanding to improve adhesion.
Embossing or texturing for decorative applications.
Edge sealing for improved aesthetics.
The ability of Free Foam panels to accept printing and lamination easily makes them a favorite in the signage industry.
Step 8: Quality Control
Every batch is checked for:
Thickness accuracy (3–20 mm).
Density and weight per square meter.
Surface uniformity (no large voids or blisters).
Color consistency.
Mechanical strength.
Good tooling reduces variability, meaning fewer rejects and higher yields.
Step 9: Packaging and Distribution
Finally, panels are stacked, often with protective films between sheets, wrapped in stretch film, and packed onto pallets. Because Free Foam panels are light, logistics costs per sheet are lower compared to MDF or Celuka boards — another competitive advantage in cost-sensitive markets.
Why the Process Matters to Buyers
Understanding the full process helps buyers appreciate why tooling design is not just another accessory. It’s the heart of this chain. If the die doesn’t deliver uniform melt flow, every downstream stage suffers: cooling becomes uneven, thickness drifts, panels warp, and customers complain. In contrast, a well-designed Free Foam PVC Panel Tooling ensures the process runs smoothly, efficiently, and profitably.
Advantages of Free Foam PVC Panels
Free Foam PVC panels aren’t simply a cheaper alternative to traditional materials — they embody a set of advantages that solve real-world problems in construction, signage, interior design, and beyond. Below, we’ll explore these benefits in detail, both from a technical performance perspective and from a business profitability angle.
1. Lightweight Design
One of the defining features of Free Foam PVC panels is their low density. Compared to MDF, plywood, or Celuka boards, Free Foam panels weigh significantly less.
For installers, this means less physical effort and faster handling on job sites.
For logistics managers, reduced shipping weight directly lowers transportation costs.
For designers, lightweight panels enable creative structures — from suspended displays to temporary partitions — that would be impractical with heavier materials.
Weight reduction also expands the range of applications, especially in industries where mobility matters, such as exhibitions or temporary constructions.
2. Cost-Effectiveness
In many industries, price drives purchasing decisions. Free Foam PVC panels are produced with lower raw material consumption and simpler calibration processes, which means:
Lower production costs for manufacturers.
More competitive pricing in the marketplace.
Faster return on investment (ROI) for companies adopting Free Foam tooling.
For businesses in emerging economies or highly competitive signage markets, these panels often hit the perfect balance between affordability and performance.
3. Energy Efficiency in Production
Because Free Foam tooling allows expansion without dense surface compression, the extrusion line consumes less energy.
Lower mold temperatures reduce electricity use.
Simpler calibration systems mean fewer vacuum pumps and cooling demands.
Faster start-up and easier process control cut wasted hours and material.
The result: lower operating costs per sheet and a smaller carbon footprint — an important selling point in today’s environmentally conscious markets.
4. Versatility in Applications
Free Foam panels are remarkably adaptable. They can be:
Printed directly for advertising boards.
Cut and machined for cabinetry or displays.
Laminated with decorative films for interior wall cladding.
Thermoformed into curved or shaped components.
This versatility makes them attractive to distributors and wholesalers, since one product line can serve multiple industries.
5. Ease of Processing
Working with Free Foam panels is easier than handling MDF or plywood:
They can be cut with standard woodworking tools.
Edges don’t fray or splinter.
They can be screwed, glued, or welded.
Printing inks and adhesives bond well to the surface.
This means fabricators don’t need special machinery, lowering barriers to adoption.
6. Moisture and Pest Resistance
Unlike wood, MDF, or particle board, Free Foam PVC panels are:
Waterproof – they do not swell, warp, or rot.
Resistant to termites and insects.
Stable in humid environments.
This makes them especially suitable for interior wall panels in bathrooms, kitchens, or basements — areas where traditional wood-based panels fail.
7. Safety and Fire Behavior
With the right additives, Free Foam panels can achieve excellent fire-retardant properties. Unlike some organic materials, PVC panels self-extinguish once the flame source is removed, adding a safety advantage in residential, commercial, and exhibition settings.
8. Smooth, Uniform Appearance
Although not as glossy as Celuka panels, Free Foam sheets have a consistent matte surface that is well-suited for:
Direct digital printing.
Screen printing.
Lamination with films and foils.
The even surface helps ensure high-quality graphics and decorative finishes.
9. Sustainability and Material Savings
Because Free Foam panels are lighter and use less PVC resin per sheet, they represent a more resource-efficient option. Scrap material can also be re-ground and recycled back into production, reducing waste. For companies pursuing sustainability certifications or greener product lines, Free Foam technology is a strategic advantage.
10. Simplicity in Tooling and Line Setup
Compared to Celuka extrusion, Free Foam tooling is:
Simpler to design.
Easier to operate.
Faster to set up and calibrate.
This means lower capital investment, reduced downtime, and shorter learning curves for operators. For new manufacturers entering the market, Free Foam tooling offers a less risky, more forgiving entry point.
The Strategic Bottom Line
For manufacturers, the advantages of Free Foam PVC panels translate into lower costs, broader markets, and higher profitability. For end-users, they offer lightweight, versatile, and affordable materials that fit a wide range of applications.
In other words, Free Foam PVC Panel Tooling is not just about making panels — it’s about unlocking a competitive advantage in fast-growing material markets.
Applications Across Industries
If Chapter 5 was about why Free Foam PVC panels are a smart choice, this chapter is about where they shine. Their blend of lightness, versatility, and cost-efficiency makes them the go-to material in diverse industries — from construction and furniture to advertising and packaging. Let’s explore these domains in detail.
1. Construction and Interior Design
In construction, Free Foam panels are valued for their lightweight strength and moisture resistance.
Wall Cladding & Ceiling Panels
Their water resistance makes them ideal for kitchens, bathrooms, basements, and other damp environments where wood panels would swell or rot.Partitions & Temporary Structures
Builders love Free Foam for quick-install partitions in offices, malls, and exhibitions. Panels can be cut on-site with simple tools, allowing rapid customization.Decorative Laminates
When laminated with PVC films or printed foils, Free Foam panels mimic the look of wood, stone, or metal, providing stylish finishes at a fraction of the weight.
2. Signage and Advertising
Perhaps the largest market for Free Foam PVC panels lies in signage.
Printing Boards
With their smooth, uniform matte surface, they are perfect for direct printing — whether UV flatbed, screen, or digital.Billboards & Display Boards
Lightweight means easy installation on high structures, and weather resistance ensures durability outdoors.POP (Point of Purchase) Displays
Retailers rely on Free Foam for promotional stands, exhibition displays, and temporary product showcases. They’re cost-effective, easy to cut into custom shapes, and durable enough for weeks of heavy foot traffic.
3. Furniture and Cabinetry
Furniture manufacturers appreciate Free Foam PVC panels as a wood substitute in cost-sensitive markets.
Cabinet Doors & Shelves
Resistant to moisture and termites, making them a smarter choice than particleboard in humid climates.Decorative Panels
Can be milled or carved into patterns, then painted or laminated for modern interior looks.Light Furniture
Perfect for student housing, budget hotels, or portable furniture where affordability and weight reduction matter.
4. Exhibition and Event Industry
Free Foam panels have become a secret weapon for event builders.
Exhibition Booths
Panels can be quickly cut and assembled into booths, partitions, and backdrops. After the event, they’re easy to dismantle, store, or recycle.Stage Decorations
Lightweight boards can be shaped into props, logos, or temporary installations that need to be visually striking yet easy to transport.
5. Packaging and Protection
This is a lesser-known but growing market.
Protective Inserts
Free Foam sheets are used as lightweight protective layers in crates and boxes for fragile items like electronics or glass.Reusable Packaging
Some industries prefer Free Foam sheets over corrugated cardboard for reusable shipping containers because of their moisture resistance and durability.
6. DIY and Hobby Markets
End-users and small workshops often buy Free Foam panels for creative projects:
Model Making – architectural models, prototypes, craft designs.
Home Renovation – DIY wall coverings, decorative partitions, or shelves.
Art & Sign Workshops – affordable canvas for painting, signage, and small-scale fabrication.
This sector, while fragmented, represents a consistent demand base for panel suppliers.
7. Automotive and Transport
Though less common, Free Foam PVC panels are finding niches in transportation:
Interior Panels – used in buses, caravans, and utility vehicles where lightweight and low-cost alternatives to plywood are needed.
Protective Linings – in shipping containers or cargo vehicles, where resistance to moisture and pests is an advantage.
8. Education and Institutional Use
Schools, universities, and government buildings use Free Foam panels in bulletin boards, display boards, and signage. The panels are easy to replace, safe, and budget-friendly for public projects.
9. Agricultural and Outdoor Applications
Though not as durable as Celuka for heavy-duty outdoor use, Free Foam panels still serve well in moderate environments:
Greenhouse Partitions
Temporary Animal Housing
Farm Signage
Their resistance to pests and moisture makes them more reliable than untreated wood in rural applications.
The Application Spectrum
In short, Free Foam PVC panels are not tied to a single market. Their cross-industry adaptability means manufacturers can diversify their sales across multiple sectors — reducing risk and maximizing profitability. For a single extrusion line, this flexibility is gold: the same tooling investment can serve builders, advertisers, furniture makers, and more.
Technical Considerations for Manufacturers
Producing Free Foam PVC panels may sound straightforward — melt the compound, push it through a die, let it expand. In practice, though, the success or failure of a production line hinges on precise technical details. Tooling design, material formulation, and process control all play pivotal roles.
1. Tooling Design Specifics
Unlike Celuka dies, where the melt is constrained, Free Foam dies release the molten PVC directly into atmospheric conditions. That difference changes everything in the die design.
Feeding Channel Geometry
Must ensure even distribution of melt. Any imbalance will result in uneven foaming and warped panels.Flow Divider
Needs careful calibration to balance flow across the entire width (from 400 mm up to 1220 mm). Poor design here leads to density variations across the sheet.Flat Die Outlet
Since there is no skin-forming compression, the outlet must allow smooth, turbulence-free flow. Even small disturbances can create surface defects.Heating Zones
Dies are typically divided into 3–5 temperature zones. Each zone can be independently controlled, allowing fine-tuning of the melt condition before exit.
2. Extruder Selection
Free Foam panels demand high mixing capability because of the foaming agents involved.
Preferred Machines: Parallel twin-screw extruders (e.g., 75/36, 90/36, or larger) with high torque and strong temperature control.
Motor Power: Typically 55–75 kW for mid-range lines.
Throughput: 250–450 kg/h, depending on screw size and recipe.
Line Speed: 1–3 m/min for optimal foaming and stability.
3. Material Formulation
PVC is the base, but additives define the performance of the final panel.
Foaming Agents
AC (Azodicarbonamide) – widely used, creates uniform cell structure.
OBS – alternative with lower decomposition temperature.
Stabilizers
Essential for processing at high heat; Ca-Zn stabilizers are increasingly preferred over lead-based options.Lubricants
Both internal and external lubricants are necessary to control melt viscosity and release.Fillers
Calcium carbonate is often added to reduce cost and control density.
4. Process Parameters
Melt Temperature: Typically 165–185°C. Too high = burnt PVC, too low = poor foaming.
Die Temperature: Controlled in multiple zones, often slightly cooler at the outlet to stabilize foam formation.
Screw Speed: Moderate; high shear can degrade foaming agents prematurely.
Vacuum & Cooling: Unlike Celuka lines, Free Foam does not use heavy vacuum calibration. Instead, panels are cooled gradually on rollers.
5. Panel Specifications
Most tooling setups aim for the following production range:
| Parameter | Range | Notes |
|---|---|---|
| Width | 400 – 1220 mm | Adjustable by die lip inserts |
| Thickness | 3 – 20 mm | Controlled by die gap & cooling |
| Density | 0.4 – 0.6 g/cm³ | Lower than Celuka |
| Output Capacity | 250 – 450 kg/h | Depending on extruder size |
| Surface Finish | Matte, slightly porous | Paintable, printable |
| Applications | Indoor panels, signage, furniture | Lightweight use cases |
6. Quality Control
Consistency is king in panel production. Manufacturers must invest in online and offline QC.
Visual Inspection: Check for surface pits, voids, or density streaks.
Density Measurement: Each batch must meet customer requirements (too light = fragile, too heavy = costly).
Thickness Tolerance: Controlled within ±0.1–0.3 mm depending on panel size.
Dimensional Stability: Panels must not warp after cooling — often a sign of uneven die heating.
7. Maintenance of Tooling
Free Foam dies, although simpler than Celuka dies, still require careful upkeep.
Regular Cleaning: Prevents carbonization of PVC inside flow channels.
Polishing: Outlet lips must remain smooth to avoid surface streaks.
Heating Elements: Must be checked periodically for even temperature delivery.
8. Operator Skill Level
The good news: Free Foam lines are easier to run than Celuka. However, operators must still be trained in:
Correct startup and shutdown procedures.
Monitoring die pressure and temperatures.
Adjusting foaming agent dosage when density drifts.
Preventing degradation (PVC is notorious for burning if mishandled).
9. Integration with Downstream Equipment
A complete Free Foam panel line usually includes:
Calibrating & Cooling Rollers – control thickness and flattening.
Haul-Off – maintains steady pulling speed without crushing panels.
Cutting Unit – saw or blade for precise panel lengths.
Stacking Table – final handling station.
10. Cost and ROI for Manufacturers
Tooling Cost: Generally lower than Celuka dies, making it attractive for small to mid-sized producers.
Operating Costs: Lower energy consumption due to reduced density.
Return on Investment: A well-run line can achieve payback within 1–2 years depending on market demand.
Global Market Outlook and Business Potential
Free Foam PVC panels occupy a sweet spot in the materials market: they’re cheaper than wood-based products, lighter than Celuka, and versatile enough to serve multiple industries. As global demand shifts toward sustainable, low-cost, and easy-to-process materials, the market for Free Foam panels is steadily expanding.
1. Global Demand Growth
Construction Boom in Emerging Markets
Countries across Asia, Africa, and Latin America are experiencing rapid urbanization. Affordable building materials like Free Foam PVC are in high demand for housing, interior partitions, and wall cladding.Advertising & Signage Expansion
As retail and e-commerce industries grow, so does the need for POP displays, signage, and promotional boards. Free Foam’s printability makes it the standard substrate for cost-effective campaigns.Furniture Sector
Rising middle-class populations in India, Southeast Asia, and Africa are fueling demand for budget furniture, where Free Foam competes directly with MDF and particleboard.
2. Regional Market Dynamics
Asia-Pacific (APAC)
The largest and fastest-growing market. China and India dominate production, both for domestic consumption and exports. Local manufacturers favor Free Foam for its low cost and high scalability.Europe
More mature, with strong demand in advertising, exhibitions, and indoor construction. Environmental regulations (favoring lead-free stabilizers) are shaping production technologies.Middle East & Africa
Demand is driven by infrastructure projects and affordable housing. Free Foam is well-positioned due to its lightweight transportability and termite resistance.North America
The market is smaller compared to Celuka and traditional PVC, but niche sectors like signage, DIY, and temporary construction show steady growth.
3. Competitive Landscape
Free Foam panels are not monopolized — many mid-sized companies worldwide produce them. This creates an open field where new entrants can carve market share, especially with efficient tooling.
Advantages for New Manufacturers
Lower tooling investment compared to Celuka.
Easier line operation and reduced operator skill requirements.
Shorter ROI cycle (12–24 months).
Challenges
Price competition is intense, especially in APAC.
Consistency of product quality is crucial to differentiate.
4. Sustainability and Regulation
Environmental pressure is reshaping the plastics industry, and PVC producers are adapting.
Lead-Free Stabilizers – Many regions mandate Ca-Zn or organic stabilizers.
Recyclability – Free Foam panels can be recycled into secondary products, giving manufacturers a green selling point.
Lightweight Advantage – Lower material consumption per panel reduces carbon footprint per square meter of coverage compared to MDF or plywood.
5. Market Segmentation by Application
Signage & Advertising – ~40% of demand.
Construction & Interiors – ~30%.
Furniture & Cabinetry – ~20%.
Other uses (DIY, packaging, transport, etc.) – ~10%.
This spread shows the resilience of demand: even if one sector slows (e.g., construction), signage or furniture continues to drive sales.
6. Future Trends
Shift to Digital Printing
As digital flatbed printing expands, Free Foam panels gain traction as a perfect substrate.Customized Furniture
Lightweight furniture with PVC panels is growing in low-income and student housing sectors.Hybrid Products
Combining Free Foam with laminates, aluminum films, or coatings expands application potential.Smaller, Decentralized Production
With tooling becoming more accessible, local factories can serve regional markets, reducing transport costs.
7. Business Potential for Manufacturers
Investing in Free Foam tooling is not just about producing panels; it’s about capturing multi-industry demand with a single line.
Capital Investment
Tooling: lower than Celuka dies.
Extruder: mid-range twin-screw.
Downstream: simple calibration and cutting units.
Operating Costs
Lower energy consumption due to lightweight product.
Lower raw material usage (density reduction = savings).
Profit Margins
Typically 15–25% higher than wood-based substitutes in developing markets.
High-volume potential in signage and advertising industries.
8. Risk Factors
Raw Material Prices: PVC resin fluctuations directly impact profitability.
Competition: Markets like China are saturated; differentiation via quality is essential.
Regulatory Changes: Environmental policies may increase costs (e.g., stabilizer bans).
Still, compared to other extrusion businesses, Free Foam panels remain among the lowest-risk entry points due to their broad application base.
9. ROI Scenario Example
A mid-sized production line (capacity ~400 kg/h) can typically:
Produce 5,000–8,000 m² of panels per month.
Sell at $2–5 per m² depending on thickness and application.
Achieve revenue of $15,000–40,000 per month.
Reach payback within 12–18 months, provided sales channels are secured.
Outlook in One Line
Free Foam PVC panels aren’t just a technical product — they’re a strategic market opportunity, combining low capital barriers with wide demand across multiple sectors. For manufacturers entering extrusion, it’s one of the fastest ways to scale.
Case Study & Success Story – A Manufacturer’s Journey
In the competitive world of PVC panel production, success is often determined not just by technology, but by strategy, execution, and market understanding. The story of NovaBuild Panels, a mid-sized manufacturer in Central Europe, illustrates how investing in Free Foam PVC Panel Tooling can transform a company’s market position and profitability.
Background: Challenges of Traditional Panel Production
NovaBuild had long relied on MDF and Celuka panels for their client base, serving both interior decoration and signage sectors. However, several challenges were emerging:
High production costs – Celuka dies required significant energy, high-grade raw materials, and frequent maintenance.
Weight issues – Panels were heavy, complicating logistics and installation for end-users.
Market pressure – Competitors were offering cheaper alternatives, eroding margins.
Flexibility limitations – Adjusting thickness or width on Celuka lines was time-consuming and costly.
The company needed a solution that would reduce costs, open new markets, and improve efficiency.
Step 1: Choosing Free Foam Tooling
After evaluating the options, NovaBuild invested in Free Foam PVC Panel Tooling designed by a European tooling specialist. Key motivations:
Lower capital cost compared to Celuka dies.
Simpler operation and faster setup.
Capability to produce lightweight panels for indoor signage and budget interior applications.
Adjustable width and thickness, allowing production flexibility.
The tooling was integrated with a twin-screw extruder (ATP 93) and a simple downstream cooling and cutting line.
Step 2: Production Setup and Optimization
The engineering team focused on fine-tuning the process:
Multi-zone heating on the die ensured even melt flow and uniform cell structure.
Foaming agent dosage was optimized to achieve the target density (~0.45 g/cm³) while maintaining panel stability.
Cooling rollers and haul-off speed were adjusted to prevent warping and surface defects.
Within the first month, the team achieved stable production at 400 kg/h, producing panels 400–1220 mm wide and 3–20 mm thick.
Step 3: Market Entry
NovaBuild targeted two key sectors:
Indoor signage & advertising – Lightweight, printable panels replaced older MDF boards in local retail and exhibition markets.
Interior wall panels for budget construction – Contractors appreciated the moisture-resistant, lightweight panels for partitions and decorative surfaces.
The combination of low price, good quality, and fast delivery created immediate interest.
Step 4: Results
Production Efficiency – Energy consumption dropped 20% per ton of panels.
Cost Savings – Material costs were 15–25% lower than Celuka production.
Revenue Growth – Within six months, Free Foam panels accounted for 40% of total sales, with margins slightly higher than traditional panels.
Customer Feedback – Positive reviews focused on panel lightness, ease of handling, and printability.
Scalability – By adjusting die settings, NovaBuild started producing both thin, economical sheets and thicker decorative panels with the same line.
Step 5: Key Lessons
Tooling is the foundation – The quality of the Free Foam die directly influenced consistency, density, and surface finish.
Process control matters – Multi-zone heating, screw speed, and cooling timing were critical for success.
Market versatility drives profit – Targeting multiple industries (signage + construction) reduced risk and maximized ROI.
Lower investment = faster ROI – Compared to Celuka dies, Free Foam tooling allowed payback within 12 months, freeing capital for market expansion.
Conclusion: A Blueprint for Success
NovaBuild’s journey demonstrates that Free Foam PVC Panel Tooling is not just a technical upgrade—it’s a strategic business move. Lightweight, versatile, and cost-effective panels open doors to multiple markets, while lower energy and material costs improve margins.
Manufacturers seeking to enter or expand in the PVC panel sector can use this model: choose the right tooling, optimize the process, target versatile markets, and focus on quality. In doing so, Free Foam panels become not just a product, but a competitive advantage.
Summary: Free Foam PVC Panel Tooling
Free Foam PVC panels represent a modern, versatile solution in the world of building materials, signage, furniture, and industrial applications. Unlike traditional MDF, plywood, or Celuka panels, Free Foam technology allows manufacturers to produce lightweight, cost-effective, and highly adaptable panels that meet diverse market needs.
Key Takeaways
Advanced Tooling Design
Free Foam PVC Panel Tooling is engineered to balance flow uniformity, temperature control, and free expansion. Features such as feeding channels, flow dividers, multi-zone heating, and flat die outlets ensure consistent panel thickness, density, and surface quality. Compared to Celuka dies, the Free Foam design is simpler, easier to maintain, and less expensive — making it ideal for both new entrants and established manufacturers.Precision Production Process
The production journey — from PVC powder and foaming agent mixing to extrusion, free foaming, calibration, cooling, and cutting — highlights how tooling, extruder choice, and process parameters directly affect product quality. Each stage is optimized to maximize panel uniformity, minimize defects, and maintain stable production at line speeds of 1–3 m/min.Technical and Performance Advantages
Free Foam panels offer:Lightweight design for easier handling and transport.
Cost-efficiency, with lower raw material consumption and reduced energy needs.
Moisture and pest resistance, ensuring durability in indoor and moderate outdoor applications.
Printability and surface adaptability, suitable for signage, laminates, and decorative finishes.
Versatility in thickness (3–20 mm) and width (400–1220 mm), meeting diverse industry requirements.
Applications Across Industries
Free Foam panels serve multiple sectors:Construction & Interior Design – wall cladding, partitions, decorative panels.
Signage & Advertising – printed boards, POP displays, exhibition stands.
Furniture & Cabinetry – lightweight cabinet doors, shelves, and decorative panels.
Packaging, Transport & DIY Projects – protective inserts, temporary structures, hobby projects.
Market Potential & ROI
The global market is expanding, driven by emerging economies, urbanization, and demand for cost-effective, lightweight materials. Free Foam PVC panels appeal to multiple industries, offering manufacturers diverse revenue streams and faster return on investment compared to traditional technologies.Case Study Insight
The NovaBuild Panels example demonstrates real-world success:Simplified tooling reduced capital and operational costs.
Production efficiency improved by 20%.
Multi-industry targeting allowed panels to quickly account for 40% of total sales.
ROI achieved within 12 months, validating Free Foam tooling as both a technical and business investment.
Strategic Advantages
Investing in Free Foam PVC Panel Tooling is more than buying a die — it’s securing a competitive edge. Manufacturers gain:
Operational simplicity – easier setup and maintenance.
Product versatility – one line can serve multiple applications.
Cost control – lower material and energy usage.
Market adaptability – ability to respond quickly to trends, customer demands, and niche markets.
These advantages position Free Foam PVC panels as a profitable, future-proof choice in a global market that increasingly values lightweight, cost-effective, and sustainable materials.
Closing Thoughts
For companies entering the PVC panel market, Free Foam tooling offers a low-risk, high-reward pathway. The combination of lightweight design, production flexibility, and multi-industry applicability ensures manufacturers can compete on both quality and cost.
Partnering with experienced tooling providers, such as EXTRUTEX Austria, further guarantees precision, durability, and consistent output. By mastering both the technical process and the market opportunities, manufacturers can leverage Free Foam PVC panels to drive profitability, growth, and long-term success.
Free Foam PVC Panel Tooling is not just a product; it is the gateway to versatile, efficient, and profitable panel production — a technology designed to meet modern industry demands while providing tangible business benefits.
Reviews (0)
Reviews
There are no reviews yet.
Free Foam PVC Panel Tooling
Innovative Extrusion Solutions for Lightweight, Cost-Effective, and Versatile Panels
Introduction
In today’s fast-changing building materials industry, manufacturers are constantly searching for solutions that combine lightweight properties, durability, and cost efficiency. Traditional materials such as wood, plywood, and MDF, while widely used, often come with disadvantages — susceptibility to moisture, weight limitations, environmental restrictions, and rising raw material costs. Into this landscape steps Free Foam PVC Panels, a product that has quickly become a preferred alternative in construction, interior design, signage, and packaging industries.
At the very heart of producing these panels lies a critical component: the Free Foam PVC Panel Tooling. This specialized extrusion die set determines not only the dimensional accuracy of the panel but also the quality of foaming, the surface properties, and ultimately, the performance of the finished product. For any company wishing to enter or expand within the PVC panel market, the choice of tooling is as important as the extruder itself.
Market Demand for Lightweight Panels
The demand for lightweight yet durable building materials is growing across the globe. Urbanization, rapid housing development, and the expansion of cost-sensitive markets in Asia, Africa, and South America are pushing manufacturers to find economical alternatives to conventional wood-based panels. Simultaneously, environmental considerations and sustainability goals encourage the use of PVC-based products, which can be recycled, require less natural resource consumption, and offer longer service life.
Free Foam PVC panels fit this demand perfectly. They are:
Lightweight: Easier to transport, install, and handle.
Affordable: Lower production costs compared to MDF or high-density Celuka panels.
Versatile: Suitable for a wide range of interior and decorative uses.
Moisture resistant: Unlike wood, they are not affected by humidity or termites.
For manufacturers, this creates a strong market incentive to invest in reliable, high-performance tooling that can consistently produce panels with the right dimensions, density, and surface quality.
Why Tooling Matters
While the extruder provides the raw processing power, the tooling design is what shapes the final product. A well-engineered Free Foam PVC Panel Tooling ensures:
Even distribution of melt across the full width.
Controlled foaming behavior without external compression.
Stable thickness adjustment from 3 to 20 mm.
Surface uniformity despite the absence of a compressed skin layer.
In essence, tooling is the architect of the panel’s structure. Without precise tooling, the product risks becoming warped, brittle, or dimensionally unstable — all of which directly impact the manufacturer’s profitability.
Technology Background – Free Foam vs. Celuka
The Evolution of PVC Foam Extrusion
PVC foam sheet technology has developed over decades, primarily along two parallel routes: Celuka foaming and Free Foaming. Both methods rely on the addition of chemical foaming agents into the PVC melt, but the way the foam expands and stabilizes defines the product’s surface quality, density, and mechanical properties.
Celuka extrusion uses a calibration system that compresses and cools the outer surface of the panel as it exits the die. This results in a dense, smooth, and hard outer layer — often called a “skin” — that protects the inner foam structure. Celuka boards are more rigid, heavier, and costlier to produce. They are ideal for external cladding, signage requiring durability, and applications where surface hardness is critical.
Free Foam extrusion, on the other hand, allows the PVC melt to expand freely after leaving the die. The foaming process is not confined or compressed, meaning the cell structure is lighter, the density is lower, and the surface has a slightly more open, matte texture. While not as rigid as Celuka, Free Foam panels are lighter, cheaper, and easier to process. They are widely used indoors, especially in interior decoration, wall cladding, exhibition stands, and advertising displays.
Key Structural Differences
To understand why tooling design is so important, let’s break down the structural contrasts between Celuka and Free Foam panels:
| Feature | Celuka Foamed Panel | Free Foam PVC Panel |
|---|---|---|
| Surface | Smooth, glossy, dense skin | Slightly rougher, more porous |
| Density | Higher, heavier | Lower, lightweight |
| Weight | Considerable | Very light |
| Cost | Higher production cost | More economical |
| Application | Outdoor & indoor use | Primarily indoor |
| Foaming control | Strongly compressed | Naturally expanded |
Why Free Foam Panels are Growing in Popularity
The market shift toward Free Foam PVC panels can be traced to several macro trends:
Cost Pressure in Construction & Signage
Builders, contractors, and advertisers are under constant pressure to reduce costs. Free Foam panels provide a cost-effective alternative without compromising basic performance.Lightweight Structures
In exhibition and event industries, lightweight panels save transport costs and reduce installation time. Similarly, in construction, lighter panels reduce the load on structures.Sustainability Concerns
Since Free Foam panels require less raw material (due to their lower density), they represent a more sustainable option. Manufacturers can also recycle scrap more efficiently.Ease of Processing
Free Foam panels are easier to cut, print on, laminate, or thermoform. This opens doors to creative uses in advertising and decoration.
The Role of Tooling in Free Foam Production
Because Free Foam panels lack the “skin” that Celuka panels naturally form under compression, the tooling must be designed to balance expansion, heat distribution, and melt flow with precision. The wrong die design can lead to:
Uneven cell structure, causing weak spots.
Surface defects, such as rough patches or cracks.
Dimensional instability, with panels warping after cooling.
A well-engineered Free Foam PVC Panel Tooling ensures that the melt exits the die uniformly, expands in a controlled fashion, and stabilizes during cooling — all while maintaining the required thickness (3–20 mm) and width (400–1220 mm).
Free Foam vs. Celuka: The Strategic Choice for Manufacturers
Choosing between Celuka and Free Foam tooling is ultimately a business decision:
If the target market demands durability, outdoor performance, and premium finishes, Celuka is the better option.
If the focus is on economical indoor solutions, signage, and lightweight applications, Free Foam tooling is the smarter investment.
For many manufacturers, the answer is diversification: offering both product lines. But for new entrants or those targeting fast-growing low-cost segments, Free Foam tooling offers the best route into the market.
Technical Specifications of Free Foam PVC Panel Tooling
When evaluating extrusion tooling, technical specifications are more than just numbers on a datasheet — they represent the capabilities, efficiency, and limitations of the production line. High-quality tooling is the backbone of consistent manufacturing, and every detail contributes to final product quality. Below is a breakdown of the specifications for Free Foam PVC Panel Tooling, followed by a detailed explanation of how each parameter affects production.
Technical Data Table
| Specification | Value / Range |
|---|---|
| Mold Material | Hardened steel with industrial chrome plating |
| Production Width | 400 – 1220 mm |
| Thickness Range | 3 – 20 mm (adjustable) |
| Foaming Method | Free expansion (no compressed skin) |
| Raw Material | PVC + chemical foaming agents (AC or OBS) |
| Output Capacity | Up to 450 kg/h |
| Line Speed | 1 – 3 m/min (depending on extruder type) |
| Temperature Control | Multi-zone, electric heating |
Breakdown of Specifications
1. Mold Material: Hardened Steel with Chrome Plating
The tooling body is manufactured from high-grade hardened steel, chosen for its resistance to wear, high pressure, and thermal stress. During extrusion, molten PVC combined with chemical foaming agents flows under high shear forces; without durable material, the tooling would quickly deform or corrode.
The industrial chrome plating adds a protective layer, reducing friction, preventing PVC sticking, and improving the lifetime of the die. This ensures smoother melt flow, longer service intervals, and less downtime for cleaning.
2. Production Width: 400 – 1220 mm
The tooling is designed to accommodate a wide panel range. At the lower end, 400 mm panels are suitable for small interior partitions, displays, and signage. At the upper end, 1220 mm width matches standard sheet dimensions in the global building material market (commonly referred to as 4 feet).
Flexibility in width allows manufacturers to target multiple industries with the same equipment — from small advertising boards to large wall cladding sheets.
3. Thickness Range: 3 – 20 mm (Adjustable)
One of the greatest strengths of Free Foam PVC Panel Tooling is its adjustable thickness. Panels as thin as 3 mm are lightweight and ideal for printing applications, while thicker panels up to 20 mm provide structural rigidity for furniture, exhibition booths, or interior cladding.
Adjustability also means manufacturers can respond quickly to market demand — producing thin, economical panels one week and thicker, premium-grade panels the next, all without changing the tooling.
4. Foaming Method: Free Expansion
Unlike Celuka molds, which compress the outer surface, Free Foam tooling allows the PVC melt to expand freely after leaving the die. This creates a uniform, lightweight foam core with a slightly textured surface.
This method reduces density, lowers raw material usage, and results in panels that are 30–40% lighter than Celuka alternatives — translating directly into cost savings for both producers and end users.
5. Raw Material: PVC with Foaming Agents (AC or OBS)
The formulation typically includes:
PVC resin (the base polymer).
Foaming agents such as Azodicarbonamide (AC) or OBS, which release gases during heating, forming the foam structure.
Stabilizers and lubricants, ensuring smooth processing and thermal stability.
The tooling is engineered to handle these formulations efficiently, ensuring the gases disperse evenly for consistent cell structure across the panel’s width and thickness.
6. Output Capacity: Up to 450 kg/h
High throughput is vital for profitability. With an output capacity of up to 450 kilograms per hour, the tooling allows manufacturers to achieve economies of scale. This figure depends on extruder size (commonly ATP 93 or ATP 113 twin-screw extruders) and line configuration.
Consistent high output also minimizes waste, since stable foaming reduces off-spec products during production.
7. Line Speed: 1 – 3 m/min
The production line speed depends on panel thickness, extruder performance, and cooling capacity. Thinner panels can be produced faster, while thicker panels require slower speeds for proper foaming and cooling.
A speed range of 1–3 meters per minute provides a balance between productivity and quality control, ensuring panels stabilize correctly without deformation.
8. Temperature Control: Multi-Zone Electric Heating
Free Foam tooling relies on precise temperature control across multiple zones. The die is divided into segments, each equipped with independent electric heaters. This ensures:
Even melt flow across the width.
Controlled expansion of foam cells.
Prevention of burning, scorching, or incomplete foaming.
By adjusting each heating zone, operators can fine-tune panel properties, adapting to variations in raw materials or extruder performance.
Why These Specifications Matter
At first glance, these figures might seem like routine technical details. In reality, each specification is carefully engineered to maximize product consistency, efficiency, and profitability. Together, they make Free Foam PVC Panel Tooling a powerful asset for manufacturers aiming to supply the growing market for lightweight PVC panels.
Process Flow – From PVC Powder to Finished Panel
Producing Free Foam PVC panels is not just about melting plastic and shaping it. It’s a carefully choreographed sequence of steps where raw materials, mechanical forces, temperature profiles, and tooling design all work together. A mistake in any stage can ruin the panel: bubbles collapse, surfaces blister, thickness varies, or the sheet warps. Below is the complete journey of a Free Foam PVC panel.
Step 1: Material Preparation and Mixing
The foundation of a quality panel lies in the formulation. PVC resin by itself cannot foam — it requires a blend of additives. Manufacturers carefully measure and mix:
PVC resin powder – the base polymer.
Foaming agents (AC or OBS) – release gases when heated, creating the foam structure.
Stabilizers – prevent thermal degradation of PVC at high temperatures.
Lubricants – ensure smooth material flow inside the extruder.
Fillers and modifiers – improve impact strength, flame resistance, or reduce cost.
The blend is typically prepared in a high-speed mixer, where frictional heat helps bind the additives to the PVC particles. This dry blend is then cooled and fed into storage silos, ready for extrusion.
Step 2: Feeding into the Extruder
The mixture is fed into a twin-screw extruder — usually conical or parallel, depending on the line design (e.g., ATP 93 or ATP 113). The screws compress, shear, and heat the PVC powder until it melts into a homogenous plastic mass.
This stage is critical:
Too much heat, and the foaming agents activate prematurely, creating unstable bubbles.
Too little heat, and the resin won’t fully melt, leading to poor mixing and weak spots.
The extruder is essentially the engine of the line, but without precision tooling at the end, all that controlled melt would be wasted.
Step 3: Entering the Free Foam Tooling
Once molten, the PVC mixture enters the Free Foam PVC Panel Tooling. This is the moment where art meets engineering.
The Feeding Channel evenly distributes the melt to avoid dead spots or surges.
The Flow Divider balances melt distribution across the panel width, ensuring uniform thickness.
The Flat Die Outlet allows the melt to exit without compression, enabling the foaming process to occur naturally in open air.
Heating zones within the die maintain the right temperature profile, preventing premature solidification or uncontrolled foaming.
Here, the die design determines the future of the panel: whether the foam cells expand evenly, whether the thickness holds, and whether the surface develops the desired matte finish.
Step 4: Free Foaming and Initial Expansion
As the molten sheet exits the die, the foaming agents decompose, releasing gases that expand the plastic into a cellular structure. Unlike Celuka extrusion, there’s no external compression, so the surface remains slightly textured and porous.
At this stage, timing and control are crucial. If the expansion is too rapid, bubbles may burst; if it’s too slow, density remains high. The tooling design, coupled with heating control, ensures the foam develops at the right pace.
Step 5: Calibration and Cooling
Free Foam panels don’t pass through tight calibrators like Celuka sheets, but they still require controlled cooling to stabilize dimensions. Typically, the sheet moves across a series of cooling rolls or a conveyor system where chilled water or air reduces the temperature gradually.
This stage ensures:
The foam structure is “locked in” before collapse occurs.
The panel solidifies without warping.
Dimensional stability is achieved across width and thickness.
Since the panels are lightweight, careful handling is needed to avoid bending or scratches during cooling.
Step 6: Cutting and Sizing
Once cooled, the panels are cut to desired lengths using cross-cut saws or automatic guillotines. Width trimming may also be performed to ensure clean, straight edges.
Standard sizes like 1220 × 2440 mm (4 × 8 feet) are common, as they fit global building and advertising material standards. However, custom sizes can be cut for specific customer needs.
Step 7: Surface Finishing (Optional)
Depending on application, panels may undergo secondary finishing:
Printing or lamination for advertising boards.
Surface sanding to improve adhesion.
Embossing or texturing for decorative applications.
Edge sealing for improved aesthetics.
The ability of Free Foam panels to accept printing and lamination easily makes them a favorite in the signage industry.
Step 8: Quality Control
Every batch is checked for:
Thickness accuracy (3–20 mm).
Density and weight per square meter.
Surface uniformity (no large voids or blisters).
Color consistency.
Mechanical strength.
Good tooling reduces variability, meaning fewer rejects and higher yields.
Step 9: Packaging and Distribution
Finally, panels are stacked, often with protective films between sheets, wrapped in stretch film, and packed onto pallets. Because Free Foam panels are light, logistics costs per sheet are lower compared to MDF or Celuka boards — another competitive advantage in cost-sensitive markets.
Why the Process Matters to Buyers
Understanding the full process helps buyers appreciate why tooling design is not just another accessory. It’s the heart of this chain. If the die doesn’t deliver uniform melt flow, every downstream stage suffers: cooling becomes uneven, thickness drifts, panels warp, and customers complain. In contrast, a well-designed Free Foam PVC Panel Tooling ensures the process runs smoothly, efficiently, and profitably.
Advantages of Free Foam PVC Panels
Free Foam PVC panels aren’t simply a cheaper alternative to traditional materials — they embody a set of advantages that solve real-world problems in construction, signage, interior design, and beyond. Below, we’ll explore these benefits in detail, both from a technical performance perspective and from a business profitability angle.
1. Lightweight Design
One of the defining features of Free Foam PVC panels is their low density. Compared to MDF, plywood, or Celuka boards, Free Foam panels weigh significantly less.
For installers, this means less physical effort and faster handling on job sites.
For logistics managers, reduced shipping weight directly lowers transportation costs.
For designers, lightweight panels enable creative structures — from suspended displays to temporary partitions — that would be impractical with heavier materials.
Weight reduction also expands the range of applications, especially in industries where mobility matters, such as exhibitions or temporary constructions.
2. Cost-Effectiveness
In many industries, price drives purchasing decisions. Free Foam PVC panels are produced with lower raw material consumption and simpler calibration processes, which means:
Lower production costs for manufacturers.
More competitive pricing in the marketplace.
Faster return on investment (ROI) for companies adopting Free Foam tooling.
For businesses in emerging economies or highly competitive signage markets, these panels often hit the perfect balance between affordability and performance.
3. Energy Efficiency in Production
Because Free Foam tooling allows expansion without dense surface compression, the extrusion line consumes less energy.
Lower mold temperatures reduce electricity use.
Simpler calibration systems mean fewer vacuum pumps and cooling demands.
Faster start-up and easier process control cut wasted hours and material.
The result: lower operating costs per sheet and a smaller carbon footprint — an important selling point in today’s environmentally conscious markets.
4. Versatility in Applications
Free Foam panels are remarkably adaptable. They can be:
Printed directly for advertising boards.
Cut and machined for cabinetry or displays.
Laminated with decorative films for interior wall cladding.
Thermoformed into curved or shaped components.
This versatility makes them attractive to distributors and wholesalers, since one product line can serve multiple industries.
5. Ease of Processing
Working with Free Foam panels is easier than handling MDF or plywood:
They can be cut with standard woodworking tools.
Edges don’t fray or splinter.
They can be screwed, glued, or welded.
Printing inks and adhesives bond well to the surface.
This means fabricators don’t need special machinery, lowering barriers to adoption.
6. Moisture and Pest Resistance
Unlike wood, MDF, or particle board, Free Foam PVC panels are:
Waterproof – they do not swell, warp, or rot.
Resistant to termites and insects.
Stable in humid environments.
This makes them especially suitable for interior wall panels in bathrooms, kitchens, or basements — areas where traditional wood-based panels fail.
7. Safety and Fire Behavior
With the right additives, Free Foam panels can achieve excellent fire-retardant properties. Unlike some organic materials, PVC panels self-extinguish once the flame source is removed, adding a safety advantage in residential, commercial, and exhibition settings.
8. Smooth, Uniform Appearance
Although not as glossy as Celuka panels, Free Foam sheets have a consistent matte surface that is well-suited for:
Direct digital printing.
Screen printing.
Lamination with films and foils.
The even surface helps ensure high-quality graphics and decorative finishes.
9. Sustainability and Material Savings
Because Free Foam panels are lighter and use less PVC resin per sheet, they represent a more resource-efficient option. Scrap material can also be re-ground and recycled back into production, reducing waste. For companies pursuing sustainability certifications or greener product lines, Free Foam technology is a strategic advantage.
10. Simplicity in Tooling and Line Setup
Compared to Celuka extrusion, Free Foam tooling is:
Simpler to design.
Easier to operate.
Faster to set up and calibrate.
This means lower capital investment, reduced downtime, and shorter learning curves for operators. For new manufacturers entering the market, Free Foam tooling offers a less risky, more forgiving entry point.
The Strategic Bottom Line
For manufacturers, the advantages of Free Foam PVC panels translate into lower costs, broader markets, and higher profitability. For end-users, they offer lightweight, versatile, and affordable materials that fit a wide range of applications.
In other words, Free Foam PVC Panel Tooling is not just about making panels — it’s about unlocking a competitive advantage in fast-growing material markets.
Applications Across Industries
If Chapter 5 was about why Free Foam PVC panels are a smart choice, this chapter is about where they shine. Their blend of lightness, versatility, and cost-efficiency makes them the go-to material in diverse industries — from construction and furniture to advertising and packaging. Let’s explore these domains in detail.
1. Construction and Interior Design
In construction, Free Foam panels are valued for their lightweight strength and moisture resistance.
Wall Cladding & Ceiling Panels
Their water resistance makes them ideal for kitchens, bathrooms, basements, and other damp environments where wood panels would swell or rot.Partitions & Temporary Structures
Builders love Free Foam for quick-install partitions in offices, malls, and exhibitions. Panels can be cut on-site with simple tools, allowing rapid customization.Decorative Laminates
When laminated with PVC films or printed foils, Free Foam panels mimic the look of wood, stone, or metal, providing stylish finishes at a fraction of the weight.
2. Signage and Advertising
Perhaps the largest market for Free Foam PVC panels lies in signage.
Printing Boards
With their smooth, uniform matte surface, they are perfect for direct printing — whether UV flatbed, screen, or digital.Billboards & Display Boards
Lightweight means easy installation on high structures, and weather resistance ensures durability outdoors.POP (Point of Purchase) Displays
Retailers rely on Free Foam for promotional stands, exhibition displays, and temporary product showcases. They’re cost-effective, easy to cut into custom shapes, and durable enough for weeks of heavy foot traffic.
3. Furniture and Cabinetry
Furniture manufacturers appreciate Free Foam PVC panels as a wood substitute in cost-sensitive markets.
Cabinet Doors & Shelves
Resistant to moisture and termites, making them a smarter choice than particleboard in humid climates.Decorative Panels
Can be milled or carved into patterns, then painted or laminated for modern interior looks.Light Furniture
Perfect for student housing, budget hotels, or portable furniture where affordability and weight reduction matter.
4. Exhibition and Event Industry
Free Foam panels have become a secret weapon for event builders.
Exhibition Booths
Panels can be quickly cut and assembled into booths, partitions, and backdrops. After the event, they’re easy to dismantle, store, or recycle.Stage Decorations
Lightweight boards can be shaped into props, logos, or temporary installations that need to be visually striking yet easy to transport.
5. Packaging and Protection
This is a lesser-known but growing market.
Protective Inserts
Free Foam sheets are used as lightweight protective layers in crates and boxes for fragile items like electronics or glass.Reusable Packaging
Some industries prefer Free Foam sheets over corrugated cardboard for reusable shipping containers because of their moisture resistance and durability.
6. DIY and Hobby Markets
End-users and small workshops often buy Free Foam panels for creative projects:
Model Making – architectural models, prototypes, craft designs.
Home Renovation – DIY wall coverings, decorative partitions, or shelves.
Art & Sign Workshops – affordable canvas for painting, signage, and small-scale fabrication.
This sector, while fragmented, represents a consistent demand base for panel suppliers.
7. Automotive and Transport
Though less common, Free Foam PVC panels are finding niches in transportation:
Interior Panels – used in buses, caravans, and utility vehicles where lightweight and low-cost alternatives to plywood are needed.
Protective Linings – in shipping containers or cargo vehicles, where resistance to moisture and pests is an advantage.
8. Education and Institutional Use
Schools, universities, and government buildings use Free Foam panels in bulletin boards, display boards, and signage. The panels are easy to replace, safe, and budget-friendly for public projects.
9. Agricultural and Outdoor Applications
Though not as durable as Celuka for heavy-duty outdoor use, Free Foam panels still serve well in moderate environments:
Greenhouse Partitions
Temporary Animal Housing
Farm Signage
Their resistance to pests and moisture makes them more reliable than untreated wood in rural applications.
The Application Spectrum
In short, Free Foam PVC panels are not tied to a single market. Their cross-industry adaptability means manufacturers can diversify their sales across multiple sectors — reducing risk and maximizing profitability. For a single extrusion line, this flexibility is gold: the same tooling investment can serve builders, advertisers, furniture makers, and more.
Technical Considerations for Manufacturers
Producing Free Foam PVC panels may sound straightforward — melt the compound, push it through a die, let it expand. In practice, though, the success or failure of a production line hinges on precise technical details. Tooling design, material formulation, and process control all play pivotal roles.
1. Tooling Design Specifics
Unlike Celuka dies, where the melt is constrained, Free Foam dies release the molten PVC directly into atmospheric conditions. That difference changes everything in the die design.
Feeding Channel Geometry
Must ensure even distribution of melt. Any imbalance will result in uneven foaming and warped panels.Flow Divider
Needs careful calibration to balance flow across the entire width (from 400 mm up to 1220 mm). Poor design here leads to density variations across the sheet.Flat Die Outlet
Since there is no skin-forming compression, the outlet must allow smooth, turbulence-free flow. Even small disturbances can create surface defects.Heating Zones
Dies are typically divided into 3–5 temperature zones. Each zone can be independently controlled, allowing fine-tuning of the melt condition before exit.
2. Extruder Selection
Free Foam panels demand high mixing capability because of the foaming agents involved.
Preferred Machines: Parallel twin-screw extruders (e.g., 75/36, 90/36, or larger) with high torque and strong temperature control.
Motor Power: Typically 55–75 kW for mid-range lines.
Throughput: 250–450 kg/h, depending on screw size and recipe.
Line Speed: 1–3 m/min for optimal foaming and stability.
3. Material Formulation
PVC is the base, but additives define the performance of the final panel.
Foaming Agents
AC (Azodicarbonamide) – widely used, creates uniform cell structure.
OBS – alternative with lower decomposition temperature.
Stabilizers
Essential for processing at high heat; Ca-Zn stabilizers are increasingly preferred over lead-based options.Lubricants
Both internal and external lubricants are necessary to control melt viscosity and release.Fillers
Calcium carbonate is often added to reduce cost and control density.
4. Process Parameters
Melt Temperature: Typically 165–185°C. Too high = burnt PVC, too low = poor foaming.
Die Temperature: Controlled in multiple zones, often slightly cooler at the outlet to stabilize foam formation.
Screw Speed: Moderate; high shear can degrade foaming agents prematurely.
Vacuum & Cooling: Unlike Celuka lines, Free Foam does not use heavy vacuum calibration. Instead, panels are cooled gradually on rollers.
5. Panel Specifications
Most tooling setups aim for the following production range:
| Parameter | Range | Notes |
|---|---|---|
| Width | 400 – 1220 mm | Adjustable by die lip inserts |
| Thickness | 3 – 20 mm | Controlled by die gap & cooling |
| Density | 0.4 – 0.6 g/cm³ | Lower than Celuka |
| Output Capacity | 250 – 450 kg/h | Depending on extruder size |
| Surface Finish | Matte, slightly porous | Paintable, printable |
| Applications | Indoor panels, signage, furniture | Lightweight use cases |
6. Quality Control
Consistency is king in panel production. Manufacturers must invest in online and offline QC.
Visual Inspection: Check for surface pits, voids, or density streaks.
Density Measurement: Each batch must meet customer requirements (too light = fragile, too heavy = costly).
Thickness Tolerance: Controlled within ±0.1–0.3 mm depending on panel size.
Dimensional Stability: Panels must not warp after cooling — often a sign of uneven die heating.
7. Maintenance of Tooling
Free Foam dies, although simpler than Celuka dies, still require careful upkeep.
Regular Cleaning: Prevents carbonization of PVC inside flow channels.
Polishing: Outlet lips must remain smooth to avoid surface streaks.
Heating Elements: Must be checked periodically for even temperature delivery.
8. Operator Skill Level
The good news: Free Foam lines are easier to run than Celuka. However, operators must still be trained in:
Correct startup and shutdown procedures.
Monitoring die pressure and temperatures.
Adjusting foaming agent dosage when density drifts.
Preventing degradation (PVC is notorious for burning if mishandled).
9. Integration with Downstream Equipment
A complete Free Foam panel line usually includes:
Calibrating & Cooling Rollers – control thickness and flattening.
Haul-Off – maintains steady pulling speed without crushing panels.
Cutting Unit – saw or blade for precise panel lengths.
Stacking Table – final handling station.
10. Cost and ROI for Manufacturers
Tooling Cost: Generally lower than Celuka dies, making it attractive for small to mid-sized producers.
Operating Costs: Lower energy consumption due to reduced density.
Return on Investment: A well-run line can achieve payback within 1–2 years depending on market demand.
Global Market Outlook and Business Potential
Free Foam PVC panels occupy a sweet spot in the materials market: they’re cheaper than wood-based products, lighter than Celuka, and versatile enough to serve multiple industries. As global demand shifts toward sustainable, low-cost, and easy-to-process materials, the market for Free Foam panels is steadily expanding.
1. Global Demand Growth
Construction Boom in Emerging Markets
Countries across Asia, Africa, and Latin America are experiencing rapid urbanization. Affordable building materials like Free Foam PVC are in high demand for housing, interior partitions, and wall cladding.Advertising & Signage Expansion
As retail and e-commerce industries grow, so does the need for POP displays, signage, and promotional boards. Free Foam’s printability makes it the standard substrate for cost-effective campaigns.Furniture Sector
Rising middle-class populations in India, Southeast Asia, and Africa are fueling demand for budget furniture, where Free Foam competes directly with MDF and particleboard.
2. Regional Market Dynamics
Asia-Pacific (APAC)
The largest and fastest-growing market. China and India dominate production, both for domestic consumption and exports. Local manufacturers favor Free Foam for its low cost and high scalability.Europe
More mature, with strong demand in advertising, exhibitions, and indoor construction. Environmental regulations (favoring lead-free stabilizers) are shaping production technologies.Middle East & Africa
Demand is driven by infrastructure projects and affordable housing. Free Foam is well-positioned due to its lightweight transportability and termite resistance.North America
The market is smaller compared to Celuka and traditional PVC, but niche sectors like signage, DIY, and temporary construction show steady growth.
3. Competitive Landscape
Free Foam panels are not monopolized — many mid-sized companies worldwide produce them. This creates an open field where new entrants can carve market share, especially with efficient tooling.
Advantages for New Manufacturers
Lower tooling investment compared to Celuka.
Easier line operation and reduced operator skill requirements.
Shorter ROI cycle (12–24 months).
Challenges
Price competition is intense, especially in APAC.
Consistency of product quality is crucial to differentiate.
4. Sustainability and Regulation
Environmental pressure is reshaping the plastics industry, and PVC producers are adapting.
Lead-Free Stabilizers – Many regions mandate Ca-Zn or organic stabilizers.
Recyclability – Free Foam panels can be recycled into secondary products, giving manufacturers a green selling point.
Lightweight Advantage – Lower material consumption per panel reduces carbon footprint per square meter of coverage compared to MDF or plywood.
5. Market Segmentation by Application
Signage & Advertising – ~40% of demand.
Construction & Interiors – ~30%.
Furniture & Cabinetry – ~20%.
Other uses (DIY, packaging, transport, etc.) – ~10%.
This spread shows the resilience of demand: even if one sector slows (e.g., construction), signage or furniture continues to drive sales.
6. Future Trends
Shift to Digital Printing
As digital flatbed printing expands, Free Foam panels gain traction as a perfect substrate.Customized Furniture
Lightweight furniture with PVC panels is growing in low-income and student housing sectors.Hybrid Products
Combining Free Foam with laminates, aluminum films, or coatings expands application potential.Smaller, Decentralized Production
With tooling becoming more accessible, local factories can serve regional markets, reducing transport costs.
7. Business Potential for Manufacturers
Investing in Free Foam tooling is not just about producing panels; it’s about capturing multi-industry demand with a single line.
Capital Investment
Tooling: lower than Celuka dies.
Extruder: mid-range twin-screw.
Downstream: simple calibration and cutting units.
Operating Costs
Lower energy consumption due to lightweight product.
Lower raw material usage (density reduction = savings).
Profit Margins
Typically 15–25% higher than wood-based substitutes in developing markets.
High-volume potential in signage and advertising industries.
8. Risk Factors
Raw Material Prices: PVC resin fluctuations directly impact profitability.
Competition: Markets like China are saturated; differentiation via quality is essential.
Regulatory Changes: Environmental policies may increase costs (e.g., stabilizer bans).
Still, compared to other extrusion businesses, Free Foam panels remain among the lowest-risk entry points due to their broad application base.
9. ROI Scenario Example
A mid-sized production line (capacity ~400 kg/h) can typically:
Produce 5,000–8,000 m² of panels per month.
Sell at $2–5 per m² depending on thickness and application.
Achieve revenue of $15,000–40,000 per month.
Reach payback within 12–18 months, provided sales channels are secured.
Outlook in One Line
Free Foam PVC panels aren’t just a technical product — they’re a strategic market opportunity, combining low capital barriers with wide demand across multiple sectors. For manufacturers entering extrusion, it’s one of the fastest ways to scale.
Case Study & Success Story – A Manufacturer’s Journey
In the competitive world of PVC panel production, success is often determined not just by technology, but by strategy, execution, and market understanding. The story of NovaBuild Panels, a mid-sized manufacturer in Central Europe, illustrates how investing in Free Foam PVC Panel Tooling can transform a company’s market position and profitability.
Background: Challenges of Traditional Panel Production
NovaBuild had long relied on MDF and Celuka panels for their client base, serving both interior decoration and signage sectors. However, several challenges were emerging:
High production costs – Celuka dies required significant energy, high-grade raw materials, and frequent maintenance.
Weight issues – Panels were heavy, complicating logistics and installation for end-users.
Market pressure – Competitors were offering cheaper alternatives, eroding margins.
Flexibility limitations – Adjusting thickness or width on Celuka lines was time-consuming and costly.
The company needed a solution that would reduce costs, open new markets, and improve efficiency.
Step 1: Choosing Free Foam Tooling
After evaluating the options, NovaBuild invested in Free Foam PVC Panel Tooling designed by a European tooling specialist. Key motivations:
Lower capital cost compared to Celuka dies.
Simpler operation and faster setup.
Capability to produce lightweight panels for indoor signage and budget interior applications.
Adjustable width and thickness, allowing production flexibility.
The tooling was integrated with a twin-screw extruder (ATP 93) and a simple downstream cooling and cutting line.
Step 2: Production Setup and Optimization
The engineering team focused on fine-tuning the process:
Multi-zone heating on the die ensured even melt flow and uniform cell structure.
Foaming agent dosage was optimized to achieve the target density (~0.45 g/cm³) while maintaining panel stability.
Cooling rollers and haul-off speed were adjusted to prevent warping and surface defects.
Within the first month, the team achieved stable production at 400 kg/h, producing panels 400–1220 mm wide and 3–20 mm thick.
Step 3: Market Entry
NovaBuild targeted two key sectors:
Indoor signage & advertising – Lightweight, printable panels replaced older MDF boards in local retail and exhibition markets.
Interior wall panels for budget construction – Contractors appreciated the moisture-resistant, lightweight panels for partitions and decorative surfaces.
The combination of low price, good quality, and fast delivery created immediate interest.
Step 4: Results
Production Efficiency – Energy consumption dropped 20% per ton of panels.
Cost Savings – Material costs were 15–25% lower than Celuka production.
Revenue Growth – Within six months, Free Foam panels accounted for 40% of total sales, with margins slightly higher than traditional panels.
Customer Feedback – Positive reviews focused on panel lightness, ease of handling, and printability.
Scalability – By adjusting die settings, NovaBuild started producing both thin, economical sheets and thicker decorative panels with the same line.
Step 5: Key Lessons
Tooling is the foundation – The quality of the Free Foam die directly influenced consistency, density, and surface finish.
Process control matters – Multi-zone heating, screw speed, and cooling timing were critical for success.
Market versatility drives profit – Targeting multiple industries (signage + construction) reduced risk and maximized ROI.
Lower investment = faster ROI – Compared to Celuka dies, Free Foam tooling allowed payback within 12 months, freeing capital for market expansion.
Conclusion: A Blueprint for Success
NovaBuild’s journey demonstrates that Free Foam PVC Panel Tooling is not just a technical upgrade—it’s a strategic business move. Lightweight, versatile, and cost-effective panels open doors to multiple markets, while lower energy and material costs improve margins.
Manufacturers seeking to enter or expand in the PVC panel sector can use this model: choose the right tooling, optimize the process, target versatile markets, and focus on quality. In doing so, Free Foam panels become not just a product, but a competitive advantage.
Summary: Free Foam PVC Panel Tooling
Free Foam PVC panels represent a modern, versatile solution in the world of building materials, signage, furniture, and industrial applications. Unlike traditional MDF, plywood, or Celuka panels, Free Foam technology allows manufacturers to produce lightweight, cost-effective, and highly adaptable panels that meet diverse market needs.
Key Takeaways
Advanced Tooling Design
Free Foam PVC Panel Tooling is engineered to balance flow uniformity, temperature control, and free expansion. Features such as feeding channels, flow dividers, multi-zone heating, and flat die outlets ensure consistent panel thickness, density, and surface quality. Compared to Celuka dies, the Free Foam design is simpler, easier to maintain, and less expensive — making it ideal for both new entrants and established manufacturers.Precision Production Process
The production journey — from PVC powder and foaming agent mixing to extrusion, free foaming, calibration, cooling, and cutting — highlights how tooling, extruder choice, and process parameters directly affect product quality. Each stage is optimized to maximize panel uniformity, minimize defects, and maintain stable production at line speeds of 1–3 m/min.Technical and Performance Advantages
Free Foam panels offer:Lightweight design for easier handling and transport.
Cost-efficiency, with lower raw material consumption and reduced energy needs.
Moisture and pest resistance, ensuring durability in indoor and moderate outdoor applications.
Printability and surface adaptability, suitable for signage, laminates, and decorative finishes.
Versatility in thickness (3–20 mm) and width (400–1220 mm), meeting diverse industry requirements.
Applications Across Industries
Free Foam panels serve multiple sectors:Construction & Interior Design – wall cladding, partitions, decorative panels.
Signage & Advertising – printed boards, POP displays, exhibition stands.
Furniture & Cabinetry – lightweight cabinet doors, shelves, and decorative panels.
Packaging, Transport & DIY Projects – protective inserts, temporary structures, hobby projects.
Market Potential & ROI
The global market is expanding, driven by emerging economies, urbanization, and demand for cost-effective, lightweight materials. Free Foam PVC panels appeal to multiple industries, offering manufacturers diverse revenue streams and faster return on investment compared to traditional technologies.Case Study Insight
The NovaBuild Panels example demonstrates real-world success:Simplified tooling reduced capital and operational costs.
Production efficiency improved by 20%.
Multi-industry targeting allowed panels to quickly account for 40% of total sales.
ROI achieved within 12 months, validating Free Foam tooling as both a technical and business investment.
Strategic Advantages
Investing in Free Foam PVC Panel Tooling is more than buying a die — it’s securing a competitive edge. Manufacturers gain:
Operational simplicity – easier setup and maintenance.
Product versatility – one line can serve multiple applications.
Cost control – lower material and energy usage.
Market adaptability – ability to respond quickly to trends, customer demands, and niche markets.
These advantages position Free Foam PVC panels as a profitable, future-proof choice in a global market that increasingly values lightweight, cost-effective, and sustainable materials.
Closing Thoughts
For companies entering the PVC panel market, Free Foam tooling offers a low-risk, high-reward pathway. The combination of lightweight design, production flexibility, and multi-industry applicability ensures manufacturers can compete on both quality and cost.
Partnering with experienced tooling providers, such as EXTRUTEX Austria, further guarantees precision, durability, and consistent output. By mastering both the technical process and the market opportunities, manufacturers can leverage Free Foam PVC panels to drive profitability, growth, and long-term success.
Free Foam PVC Panel Tooling is not just a product; it is the gateway to versatile, efficient, and profitable panel production — a technology designed to meet modern industry demands while providing tangible business benefits.
-
(0 customer reviews)
